Measurement range:150-1100m
Film width:Max420mm
Film width range:140-420mm
Bag width:60-200mm
Bag Length:80-300mm
TCLB-420P Packing speed:5-50bags
Min Film roll diameter:Max.320mmFilm
thickness:0.07-015mm
Power:220V,50/60HZ,
Single Phase Dimenslons(L"W"H):3000*1850*2200mm
1. Pump measuring, adjusting weight without tools, with stable function, simple operation;
2. New design, beautiful appearance, reasonable structure, more advanced technology;
3. Excellent PLC computer control system, color touch screen easy, intuitive and efficient;

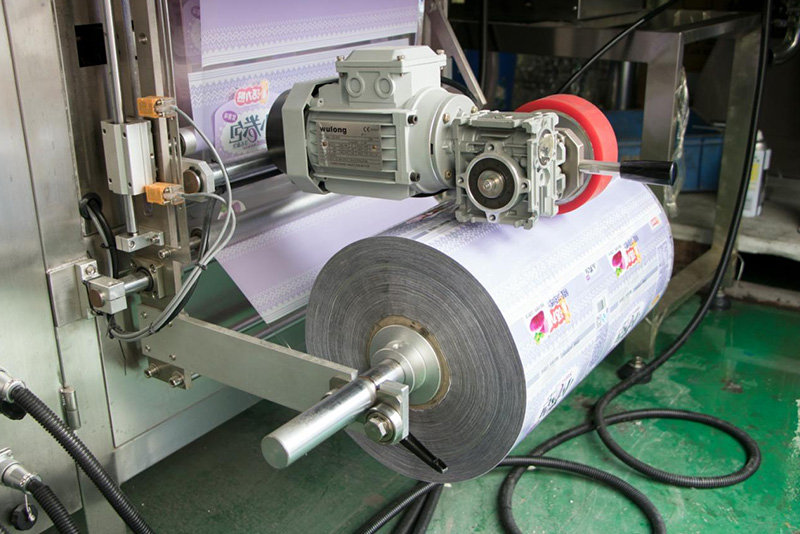

4. Excellent servo film transporting system, import color sensor, accurate positioning machine performance packaging beautifully;
5. Multiple automatic alarm protons educating the maximum loss;
6. Bag-shaped variety, can provide customers with pillow-shaped bags, thrust Angle bags, hang hole bags, even bags;
7. Applicable for milk, cooking oil, shampoo, tomato sauce, chili sauce, soy sauce and other liquid fluid class packing.
Free consultation service before, during and after sales;
Free project planning and design services;
Free debugging of equipment until everything is functional;
Free management of equipment long distance shipping;
Free training of equipment maintenance and operation personally;
Free new production techniques and formulas;
Machine provides 1 year complete warranty and full lifetime maintenance service.
|
Model： |
HF-420P |
|
Film width |
Max.420mm |
|
Film width Range(bag former) |
140-420mm |
|
Bag Width: |
65-200mm |
|
Bag Length: |
80-300mm |
|
Film roll Diameter: |
Max.320mm |
|
Packing rate: |
5-50bag/min |
|
Measurment range: |
150-1100ml |
|
Film thickness: |
0.07-0.15mm |
|
Power: |
220V,50HZ,Single Phase |
|
Machine size: |
(L)4050*(W)2600*(H)3600 |
|
Machine Weight: |
1120kg |
|
Remark |
Pneumatic Type |
