Film width: Max.520mm
Film width range(bag former): 280-520mm
Front width: 60-200mm
Side width: 50-90mm
Side seal width: 5-10mm
Bag length: 150-400mm
Film roll diameter: Max.350mm
Packing rate: 5-60bag/min
Measurement range: 150-2000ml
Film thickness: 0.07-0.15mm
Power: 220V,50HZ, single phase
Main Machine size: (L)1500*(W)1220(H)1800mm
1. Electronic scale measurement, new design, beautiful appearance, reasonable structure, more advanced technology;
2. Imported PLC computer control system, color touch screen easy, intuitive and efficient;
3. Import servo film transporting system, import color sensor, accurate positioning machine performance packaging beautifully;
4. Multiple automatic alarm protons educating the maximum loss;
5. Specially customized for the quad seal bag, the bag shape is beautiful, can stand up; ;
6. Suitable for packing all kinds of pet food, salt, sugar, soap powder, tealeaves, rice, nuts, dry fruits, puffed food, candy, peanut, melon seeds, seeds, popcorn, chips and other powdered, granular, strip product etc packing.
Free consultation service before, during and after sales;
Free project planning and design services;
Free debugging of equipment until everything is functional;
Free training of equipment maintenance and operation personally;
Free new production techniques and formulas;
Machine provides 1 year complete warranty and full lifetime maintenance service.

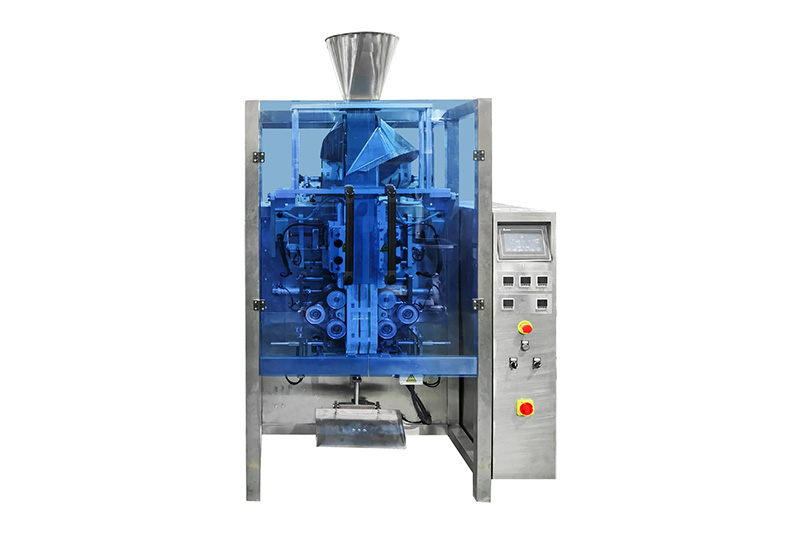

| Model: | HF-520TS |
| Film width | Max.520mm |
| Film width Range(bag former) | 280-520mm |
| Front Width | 60-200mm |
| Side Width | 50-90 mm |
| Width is side seal | 5-10 mm |
| Bag Length | 150-400mm |
| Film roll Diameter: | Max.350 |
| Packing rate: | 5-60bag/min |
| Measurment range: | 150-2000ml |
| Film thickness: | 0.07-0.15mm |
| Power: | 220V,50/60HZ,Single Phase |
| Machine size: | (L)1500*(W)1220(H)1800 mm |
| Machine Weight: | 750kg |
| Remark | Pneumatic Type |
