Packing speed：30~150 bags/min
Film size：90-400mm
Package length：60-500mm
Package width：35-160mm
General power：5KW

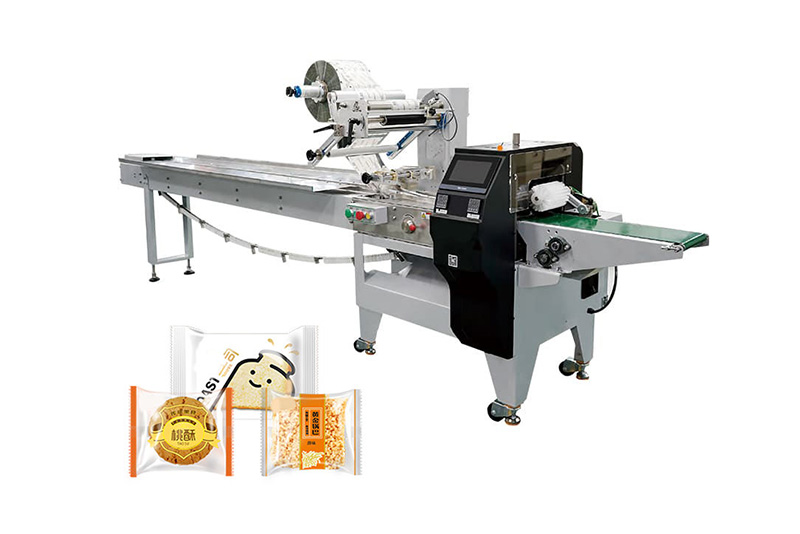

MC-180 Horizontal packaging machine for pouch packing of food, candy, medicine, and more – suitable for baking food (moon cake, bread, biscuits), medical equipment, daily necessities, hardware parts, paper boxes, and trays – discover competitive packing machine prices and packaging equipment solutions.
The machine is controlled by three servos.
Seven-inch touch screen display, easy operation, clear working state.
Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
Automatically adjust the bag length without manual setting.

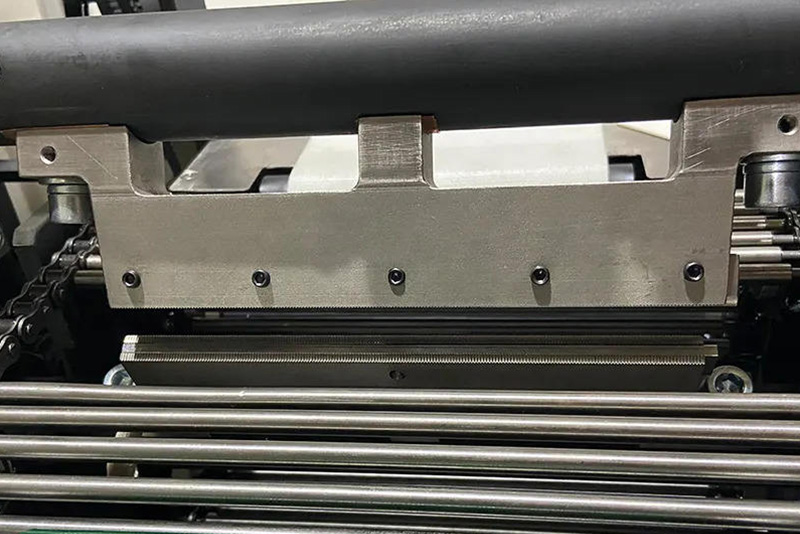

Higher precision, accurate sealing and cutting position.
Stop position and print position can be set arbitrarily.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
The range of packaging is expanded to accommodate a variety of product specifications.
The structure layout in line with human engineering mechanics can facilitate the hygienic cleaning, maintenance, maintenance and overhaul of the machine quickly.
Reduce the labor intensity of the operator and effectively improve the production efficiency.
|
Model |
MC-180(Single jaw) |
MC-180(Double jaws) |
MC-180(Triple jaws) |
|
Package length |
60~500 mm |
60~350mm |
45~100mm |
|
Package width |
35~160mm |
35~160mm |
35~160mm |
|
Package height |
5~60mm |
5~60mm |
5~60mm |
|
Packing speed |
30~150 bags/min |
30~300 bags/min |
30~500 bags/min |
|
Film size |
90~400 mm |
90~400 mm |
90~400 mm |
|
Packaging film type |
PP、PE、PVC、PS、EVA、PET、PVDC+PVC、OPP+Composite CPP |
||
|
Type of power supply |
220V 50HZ |
220V 50HZ |
220V 50HZ |
|
General power |
5.0Kw |
6.5Kw |
5.8Kw |
|
Weight |
400Kg |
400Kg |
400Kg |
|
Dimension |
4000x930x1370 mm |
||
