Packing speed：25~120 bags/min
Film size：200-600mm
Package length：120-500mm
Package width：200mm
General power：4.7KW

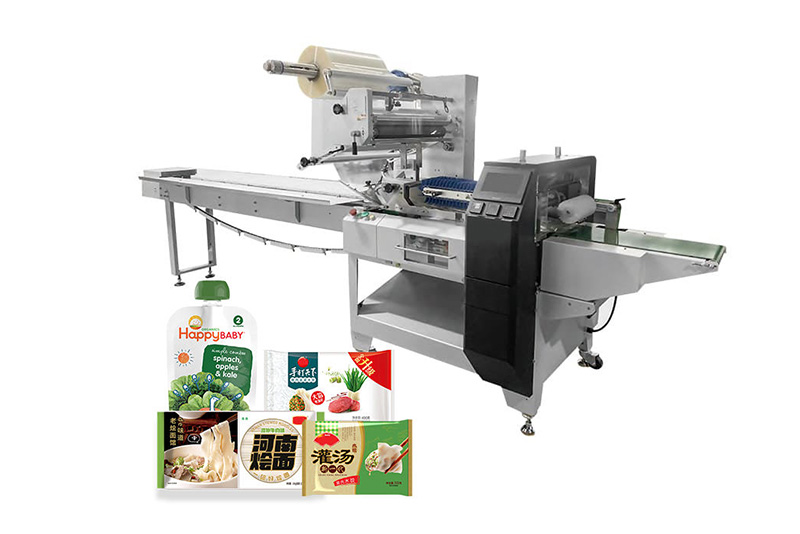

It is suitable for large-size products, such as quick-frozen products such as dumplings, wonton and glutinous rice balls, as well as multiple or single bulk steamed buns, steamed buns and other pastry foods, large-size bread, hamburgers and other solid and regular objects.
The machine is controlled by three servos.
Conveyor under the belt, can pass heavier (30g) materials; The brush can make the envelope more flat and meet the exhaust demand. The tool holder can pass through the larger size of the material.

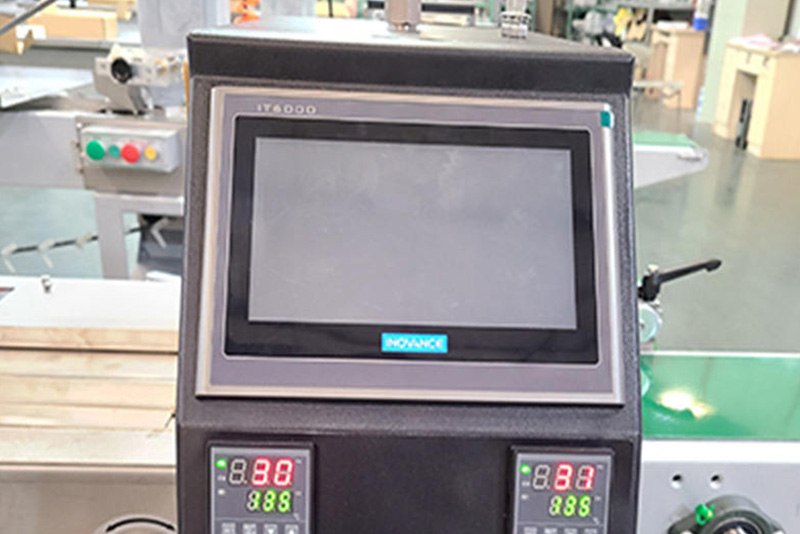

Seven-inch touch screen display, easy operation, clear working state.
Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
Automatically adjust the bag length without manual setting.
Higher precision, accurate sealing and cutting position.
Stop position and print position can be set arbitrarily.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
The range of packaging is expanded to accommodate a variety of product specifications.
The structure layout in line with human engineering mechanics can facilitate the hygienic cleaning, maintenance, maintenance and overhaul of the machine quickly.
Reduce the labor intensity of the operator and effectively improve the production efficiency.
|
Model |
MC-280 |
|
Packing speed |
25-120 bag/min |
|
Film size |
200-600 mm |
|
Package length |
120-500mm |
|
Package width |
200mm |
|
Package height |
80/110mm |
|
General power |
4.7Kw |
|
Packaging film type |
PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC. |
|
Power supply |
220v/50Hz |
|
Machine size |
4260 x 1130 x1400 mm |
|
Net weight |
550 kg |
