Packing speed：25~120 bags/min
Film size：600mm
Package length：120-600mm
Package width：250mm
General power：8KW

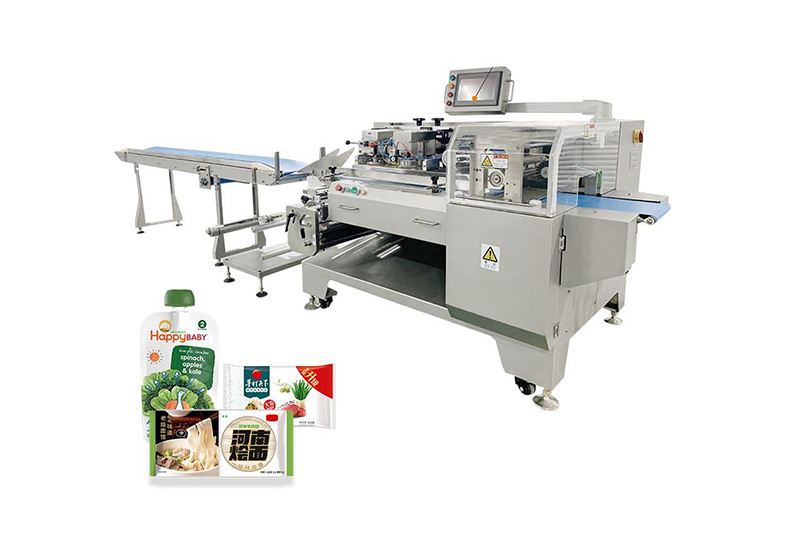

It is suitable for the packaging of baked goods, pastry, quick-frozen products, multi-small packages and other large specifications.
The machine is controlled by eight servos.
The machine packaging range is large, suitable for packaging all kinds of large specifications, large size products.
Ten inch touch screen display, easy operation, clear working state.
Can store a variety of product parameters and formulations, do not need to repeat Settings, download and use.
Automatic adjustment of bag length, no manual setting.

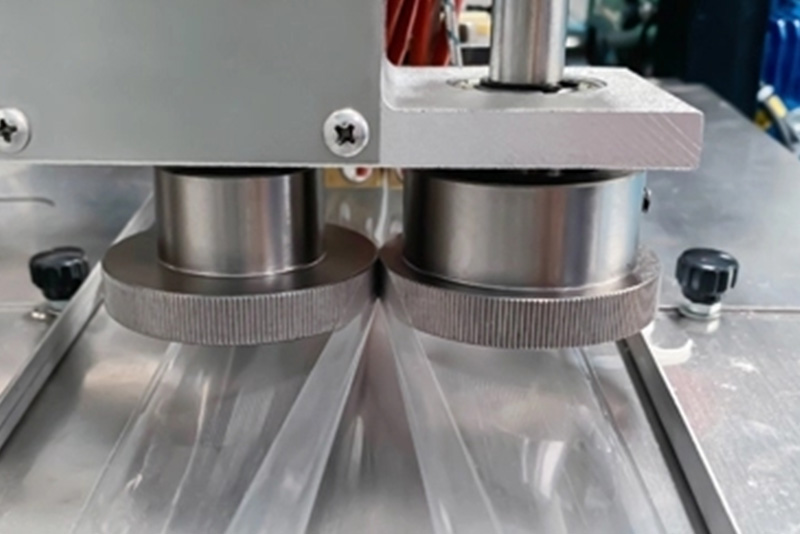

The machine has higher precision and the sealing and cutting position is accurate.
Stop position, coding position can be arbitrarily set in the touch screen, just click, convenient and fast.
Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.
|
Model |
MC-601 |
|
Distance between centers |
150/192mm |
|
Packing speed |
25-120 bag/min |
|
Film size |
600 mm |
|
Package length |
120-600mm |
|
Package width |
250mm |
|
Package height |
120mm |
|
General power |
8Kw |
|
Packaging film type |
PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP ETC. |
|
Power supply |
220v/50Hz |
|
Machine size |
5055 x 1425 x1485 mm |
|
Net weight |
900 kg |
